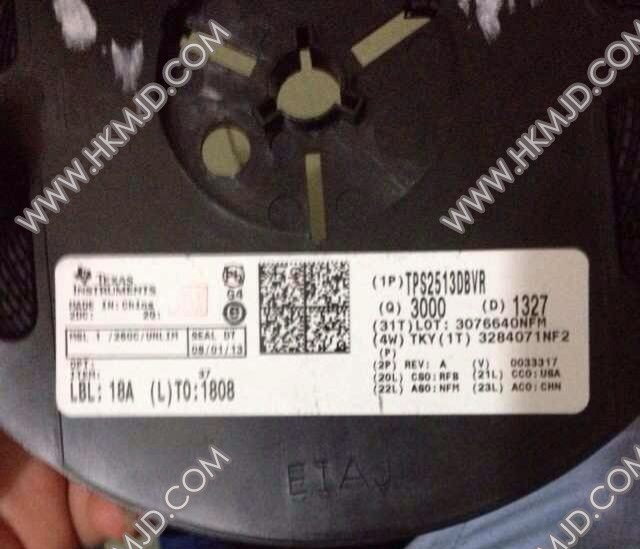

TPS2513DBVR TPS2513 USB Dedicated Charging Port Controller

TI TPS2513DBVR TPS2513 USB Dedicated Charging Port Controller

PDF Datasheet：

FEATURES

• Supports USB DCP Shorting D+ Line to D– Line per USB Battery Charging Specification, Revision 1.2 (BC1.2)

• Supports Shorted Mode (Shorting D+ Line to D- Line) per Chinese Telecommunication Industry Standard YD/T 1591-2009

• Supports USB DCP Applying 2.7 V on D+ Line and 2 V on D- line (or USB DCP Applying 2 V on D+ Line and 2.7 V on D– Line)

• Supports USB DCP Applying 1.2 V on D+ and D– Lines

• Automatically Switch D+ and D- Lines Connections for an Attached Device

• Dual USB Port Controller, TPS2513

• Single USB Port Controller, TPS2514

• Operating Range: 4.5 V to 5.5 V

• Available in SOT23-6 Package

APPLICATIONS

• Vehicle USB Power Charger

• AC-DC Adapter with USB Port

• Other USB Charger
