STV0900BE STV0900 dual demodulator for Satellite Digital TV

ST STV0900BE STV0900 Multistandard advanced dual demodulator for Satellite Digital TV New in stock

Features

■ Demodulation

– RF interfaces

– Each demodultor can handle:

– DIRECTVTM and DVBS QPSK

– DVBS2 QPSK, 8PSK and 16APSK

– Digital Nyquist root filter

– With 0.20, 0.25, 0.35 excess bandwidth

factors.

– DVBS or DIRECTVTM

– DVBS2 broadcasting (CCM)

– DVBS2 adaptative (ACM)

■ Dual decoding

– Up to 180 Mega DVBS2 channel bits per

second (Mcbps) at input to FEC

– Up to 130 Mcbps DVBS or DIRECTVTM

legacy per FEC

– Legacy DVB-S

– DVB-S2

■ Transport stream management

– Dual data to MPEG decoder

– Single ACM data to microprocessor

– DVB-S2 framing

■ Interfaces

– Dedicated 27 MHz clock generation for

back-end decoder

– I2C serial bus interface

– JTAG interface - boundary scan

– 2 DiSEqCTM

2.x interfaces

– GPIOs and interrupt lines

– Monitoring through I2C serial interface

■ Technology

– 90 nm CMOS process

– Multi supply: 1.0 V core, 2.5 V analog,

3.3 V digital interfaces

– Power saving features

■ Package

– Exposed PAD LQFP 128 14x14, 0.4 pitch

– 4 layer PCB recommended

PDF Datasheet：

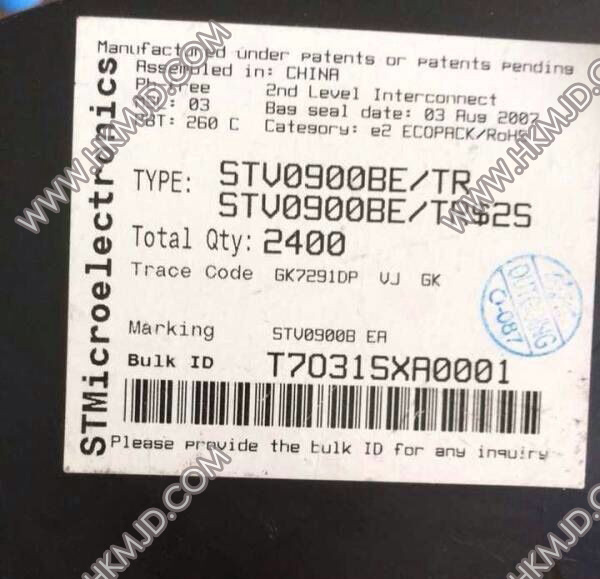

Picture：
