UC3842BD1 HIGH PERFORMANCE CURRENT MODE CONTROLLERS

ST UC3842BD1 HIGH PERFORMANCE CURRENT MODE CONTROLLERS

PDF Datasheet：

Feature

TRIMMED OSCILLATOR FOR PRECISE FREQUENCY CONTROL OSCILLATOR FREQUENCY GUARANTEED AT 250kHz

CURRENT MODE OPERATION TO 500kHz

AUTOMATIC FEED FORWARD COMPENSATION

LATCHING PWM FOR CYCLE-BY-CYCLE CURRENT LIMITING

INTERNALLY TRIMMED REFERENCE WITH UNDERVOLTAGE LOCKOUT

HIGH CURRENT TOTEM POLE OUTPUT

UNDERVOLTAGE LOCKOUT WITH HYSTERESIS

LOW START-UP AND OPERATING CURRENT

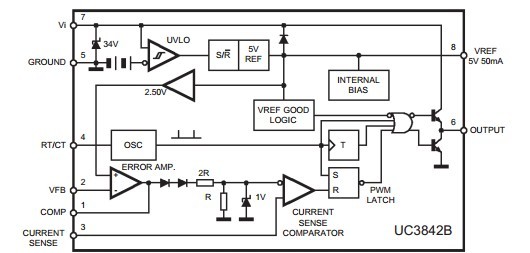

BLOCK DIAGRAM
