FSC FMS6363ACSX FMS6363 IC DVR HD VID FILTER 3CH 8-SOIC

FSC FMS6363ACSX FMS6363 Three-Channel 7th-Order High-Definition VoltagePlus™ Video Filter Driver

Description

The FMS6363A VoltagePlus™ video filter is intended to replace passive LC filters and drivers with a costeffective integrated device. The three7th-order filters provide improved frequency response performance over the FMS6363 and other 3-channel HD VFD devices.

The FMS6363A may be directly driven by a DC-coupled DAC output or an AC-coupled signal. Internal diode clamps and bias circuitry may be used if AC coupled inputs are required (see Applications section for details).

The outputs can drive AC-or DC-coupled single (150Ω) or dual (75Ω) video loads. DC coupling the outputs removes the need for large output coupling capacitors. The input DC levels are offset approximately +280mV at the output (see Applications section for details).

Features

Three 7th-Order 32MHz (HD) Filters

Drives Single AC-or DC-Coupled Video Loads (150Ω)

Drives Dual AC-or DC-Coupled Video Loads (75Ω)

Transparent Input Clamping

Single Supply: 3.3V – 5V

AC-or DC-Coupled Inputs and Outputs

DC-Coupled Output Eliminates AC-Coupling Capacitor

Robust 9kV ESD Protection

Lead-Free SOIC-8 Package

Applications

Cable Set-Top Boxes

Satellite Set-Top Boxes

DVD Players

HDTV

Personal Video Recorders (PVR)

Video On Demand (VOD)

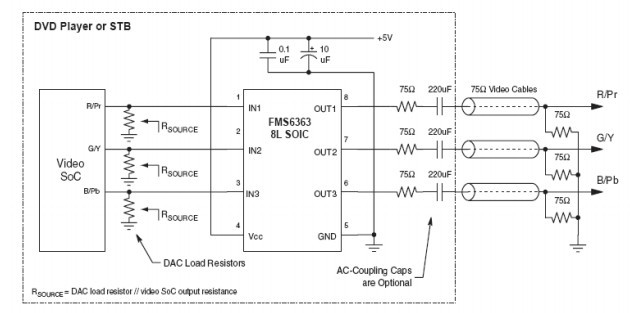

Typical Application
