MC13821FCR2 MC13821 Low Noise Amplifier with Bypass Switch

FREESCALE MC13821FCR2 MC13821 Low Noise Amplifier with Bypass Switch

Features

• RF Input Frequency: 1000 MHz to 2.4 GHz

• Gain: 16.4 dB (typ) at 1960 MHz and 15.7 dB (typ) at 2140 MHz

• Output 3rd Order Intercept Point (OIP3): 17.4 dBm (typ) at 1960 MHz and 19.7 dBm (typ) at 2140 MHz

• Noise Figure (NF): 1.25 dB (typ) at 1960 MHz and 1.3 dB (typ) at 2140 MHz

• 1dB Compression Point (P1dB): -6 dBm (typ) at 1960 MHz and -5 dBm (typ) at 2140 MHz

• Freescale’s IP3 Boost Circuitry

• Bypass Mode Included for Improved Intercept Point Performance

• Total Supply Current:2.8 mA @ 2.7 Vdc 10 µA (typ) in Bypass Mode

• Bias Stabilized for Device and Temperature Variations

• QFN-12 Leadless Package with Low Parasitics

• SiGe Technology Ensures Lowest Possible Noise Figure

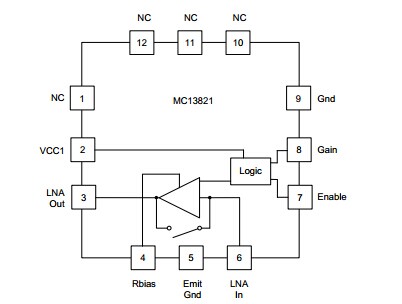

Simplified Block Diagram
