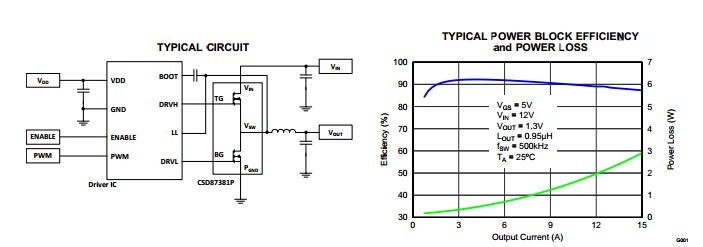

TI CSD87381P Synchronous Buck NexFET™ Power Block II
| Part number | Brand | Date | QTY | Package | Remarks |
| CSD87381P | TI | 14+ROHS | 7500 | PTAB5 |
Original have in stock |
Specification
| PDF Datasheet | CSD87381P  |
|---|---|
| Packaging | Tape & Reel (TR) |
| FET Type | 2 N-Channel (Half Bridge) |
| FET Feature | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25°C | 15A |
| Rds On (Max) @ Id, Vgs | 16.3 mOhm @ 8A, 8V |
| Vgs(th) (Max) @ Id | 1.9V @ 250µA |
| Gate Charge (Qg) @ Vgs | 5nC @ 4.5V |
| Input Capacitance (Ciss) @ Vds | 564pF @ 15V |
| Power - Max | 4W |
| Mounting Type | Surface Mount |
| Package / Case | 5-LGA |
| Supplier Device Package | 5-PTAB (3x2.5) |
