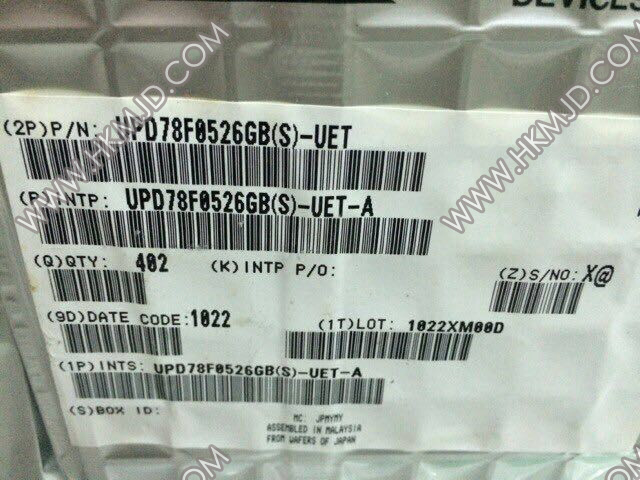

UPD78F0526GB UPD78F0526 8-BIT FLASH 20 MHz MICROCONTROLLER
| Part number | Brand | Date | QTY | Package | Remarks |
| UPD78F0526GB | NEC | 14+ROHS | 7500 | QFP |
Original have in stock |
Specification
| Mfr Package Description | 10 X 10 MM, LEAD FREE, PLASTIC, LQFP-52 |
| Lead Free | Yes |
| EU RoHS Compliant | Yes |
| China RoHS Compliant | Yes |
| Status | DISCONTINUED |
| Technology | CMOS |
| Package Shape | SQUARE |
| Package Style | FLATPACK, LOW PROFILE |
| Surface Mount | Yes |
| Terminal Form | GULL WING |
| Terminal Pitch | 0.6500 mm |
| Terminal Finish | TIN BISMUTH |
| Terminal Position | QUAD |
| Number of Functions | 1 |
| Number of Terminals | 52 |
| Package Body Material | PLASTIC/EPOXY |
| Temperature Grade | INDUSTRIAL |
| Operating Temperature-Max | 85 Cel |
| Operating Temperature-Min | -40 Cel |
| Supply Voltage-Max (Vsup) | 5.5 V |
| Supply Voltage-Min (Vsup) | 1.8 V |
| Supply Voltage-Nom (Vsup) | 5 V |
| ADC Channels | Yes |
| Address Bus Width | 0.0 |
| Bit Size | 8 |
| Clock Freq-Max (fclk) | 10 MHz |
| External Data Bus Width | 0.0 |
| Microprocess IC Type | MICROCONTROLLER |
| Number of I/O Lines | 45 |
| PWM Channels | Yes |
| ROM Programmability | FLASH |
| Speed | 20 MHz |
