POWER LNK606DG LNK606 CV/CC Switcher for Adapters and Chargers

POWER LNK606DG LNK606 Energy-Efficient, Accurate CV/CC Switcher for Adapters and Chargers

Product Highlights

Dramatically Simplifies CV/CC Converters

• Eliminates optocoupler and all secondary CV/CC control circuitry

• Eliminates all control loop compensation circuitry

Advanced Performance Features

• Compensates for transformer inductance tolerances

• Compensates for input line voltage variations

• Compensates for cable voltage drop (LNK61X series)

• Compensates for external component temperature variations

• Very tight IC parameter tolerances using proprietary trimming technology

• Frequency jittering greatly reduces EMI filter cost

• Even tighter output tolerances achievable with external resistor selection/trimming

• Programmable switching frequency up to 85 kHz to reduce transformer size

Advanced Protection/Safety Features

• Auto-restart protection reduces power delivered by >95% for

output short circuit and control loop faults (open and shorted

components)

• Hysteretic thermal shutdown – automatic recovery reduces power supply returns from the field

• Meets high voltage creepage requirements between DRAIN and

all other pins both on the PCB and at the package EcoSmart® – Energy Efficient

• Easily meets all global energy efficiency regulations

• No-load consumption below 30 mW at 230 VAC with optional external bias winding

• ON/OFF control provides constant efficiency down to very light

loads – ideal for CEC and ENERGY STAR 2.0 regulations

• No current sense resistors – maximizes efficiency Green Package

• Halogen free and RoHS compliant package

Applications

• Chargers for cell/cordless phones, PDAs, MP3/portable audio

devices, adapters, LED drivers, etc.

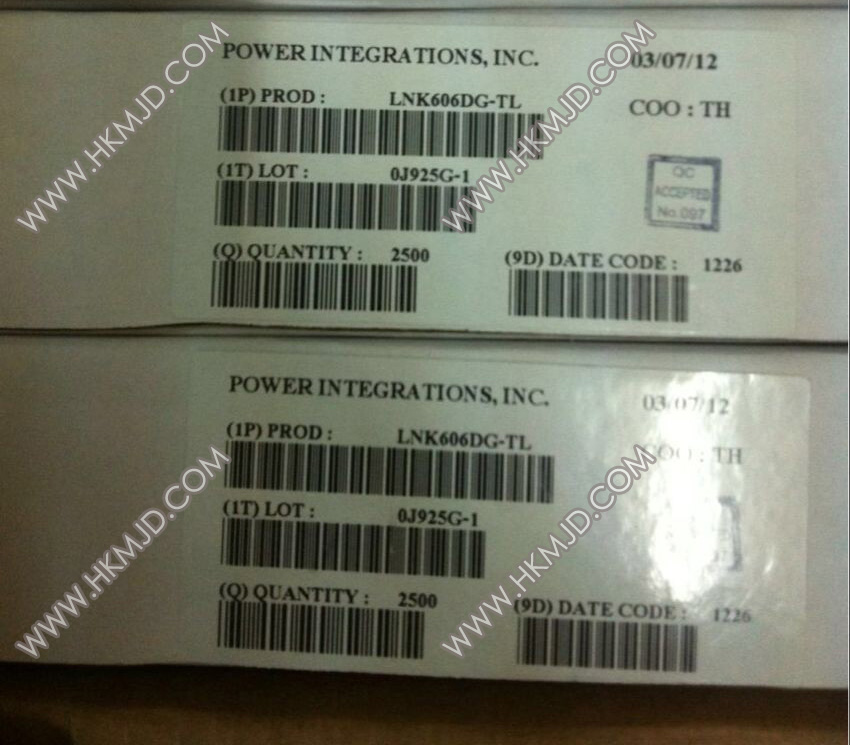

Picture：
