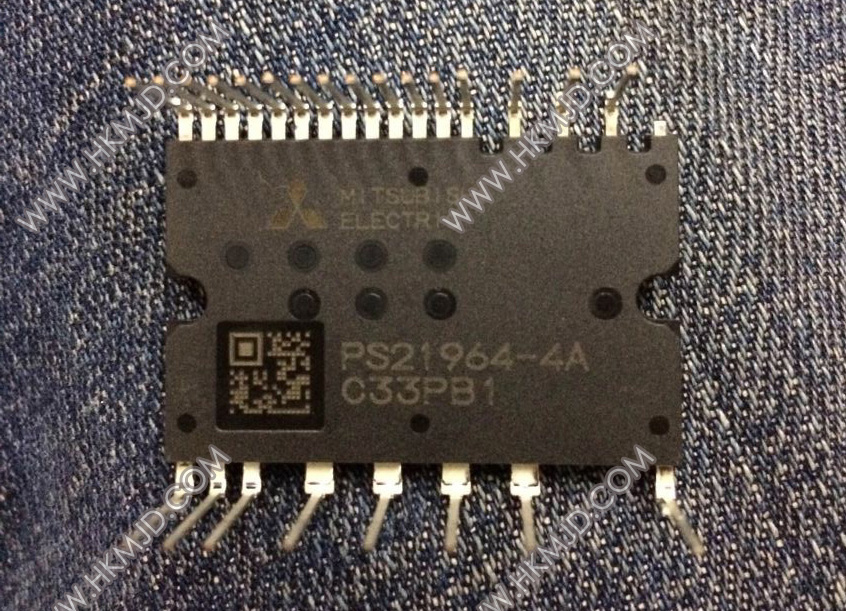

MIT PS21964-4A MOD IPM 600V 15A SUPER MINI DIP

MIT PS21964-4A 600V/15A low-loss 5th generation IGBT

Specification：

INTEGRATED DRIVE, PROTECTION AND SYSTEM CONTROL FUNCTIONS

• For upper-leg IGBTS :Drive circuit, High voltage high-speed level shifting, Control supply under-voltage (UV) protection.

• For lower-leg IGBTS : Drive circuit, Control supply under-voltage protection (UV), Short circuit protection (SC).

• Fault signaling : Corresponding to an SC fault (Lower-leg IGBT) or a UV fault (Lower-side supply).

• Input interface : 3V, 5V line (High Active).

• UL Approved : Yellow Card No. E80276
