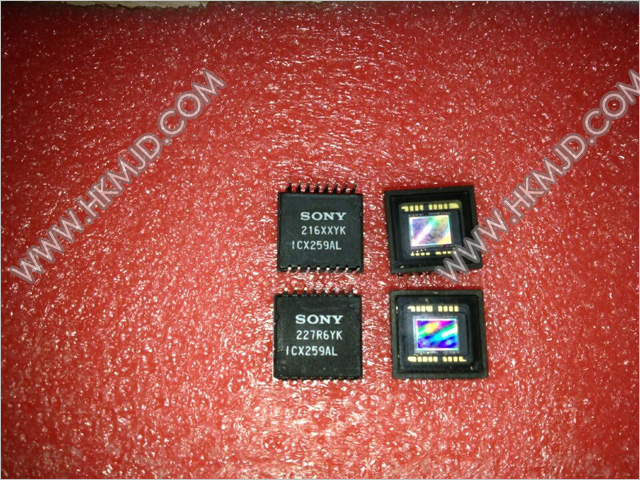

SONY ICX259AL ICX259 CCD Image Sensor

SONY ICX259AL ICX259 Diagonal 6mm (Type 1/3) CCD Image Sensor for CCIR B/W Video Cameras

Features

• Sensitivity in near infrared light region

(+8dB compared with the ICX059CL, λ = 945nm)

• High sensitivity (+7dB compared with the ICX059CL, no IR cut filter)

• Low smear (–20dB compared with the ICX059CL)

• High D range (+5dB compared with the ICX059CL)

• High S/N

• High resolution and low dark current

• Excellent antiblooming characteristics

• Continuous variable-speed shutter

• No voltage adjustment

(Reset gate and substrate bias are not adjusted.)

• Reset gate: 5V drive

• Horizontal register: 5V drive

Device Structure

• Interline CCD image sensor

• Image size: Diagonal 6mm (Type 1/3)

• Number of effective pixels: 752 (H) × 582 (V) approx. 440K pixels

• Total number of pixels: 795 (H) × 596 (V) approx. 470K pixels

• Chip size: 6.00mm (H) × 4.96mm (V)

• Unit cell size: 6.50µm (H) × 6.25µm (V)

• Optical black: Horizontal (H) direction : Front 3 pixels, rear 40 pixels

Vertical (V) direction : Front 12 pixels, rear 2 pixels

• Number of dummy bits: Horizontal 22

Vertical 1 (even fields only)

• Substrate material: Silicon
