GP2Y1010AU0F Compact Optical Dust Sensor

GP2Y1010AU0F Compact Optical Dust Sensor

■ Features

Compact, thin package (46.0 × 30.0 × 17.6 mm)

Low consumption current (Icc: MAX. 20 mA)

The presence of dust can be detected by the photometry of only one pulse

Enable to distinguish smoke from house dust

Lead-free and RoHS directive compliant

■ Compliance

 Compliant with RoHS directive (2002/95/EC)

■ Applications

 Detecting of dust in the air.

 Example: Air purifier, Air conditioner, Air monitor

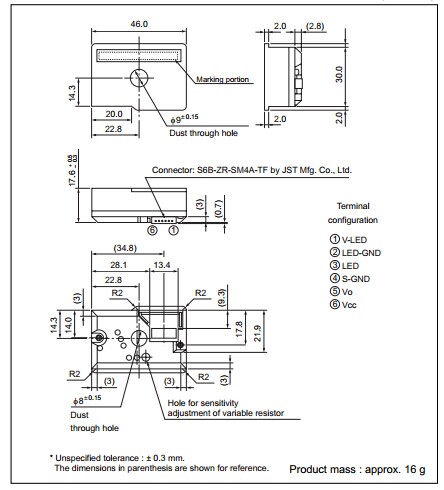

Outline Dimensions
