CY7C1041DV33-10BVJXI CY7C1041DV33 4-Mbit Static RAM

CY7C1041DV33-10BVJXI CY7C1041DV33 4-Mbit Static RAM

Features

■ Temperature ranges

❐ Industrial: –40 °C to 85 °C

❐ Automotive-A [1] : –40 °C to 85 °C

❐ Automotive-E [1] : –40 °C to 125 °C

■ Pin and function compatible with CY7C1041CV33

■ High speed

❐ tAA = 10 ns

■ Low active power

❐ ICC = 90 mA at 10 ns (industrial)

■ Low CMOS standby power

❐ ISB2 = 10 mA

■ 2.0 V data retention

■ Automatic power-down when deselected

■ TTL compatible inputs and outputs

■ Easy memory expansion with CE and OE features

■ Available in Pb-free 48-ball VFBGA, 44-pin (400-mil) molded SOJ, and 44-pin TSOP II Packages

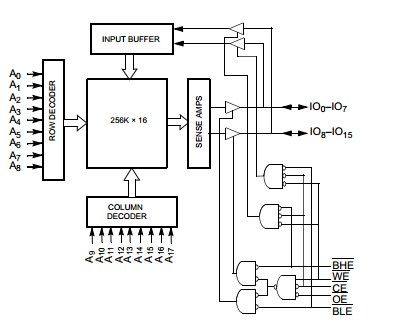

Logic Block Diagram
