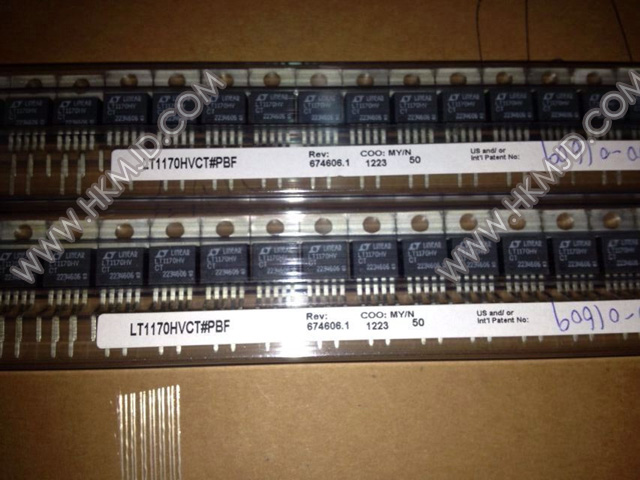

LT LT1170HVCT LT1170 High Efficiency Switching Regulators

LT LT1170HVCT LT1170 100kHz, 5A, 2.5A and 1.25A High Efficiency Switching Regulators

PDF Datasheet：

Features

■ Wide Input Voltage Range: 3V to 60V

■ Low Quiescent Current: 6mA

■ Internal 5A Switch (2.5A for LT1171,1.25A for LT1172)

■ Shutdown Mode Draws Only 50µA Supply Current

■ Very Few External Parts Required

■ Self-Protected Against Overloads

■ Operates in Nearly All Switching Topologies

■ Flyback-Regulated Mode Has Fully Floating Outputs

■ Comes in Standard 5-Pin Packages

■ LT1172 Available in 8-Pin MiniDIP and Surface Mount Packages

■ Can Be Externally Synchronized

APPLICATIOS

■ Logic Supply 5V at 10A

■ 5V Logic to ±15V Op Amp Supply

■ Battery Upconverter

■ Power Inverter (+ to –) or (– to +)

■ Fully Floating Multiple Outputs
