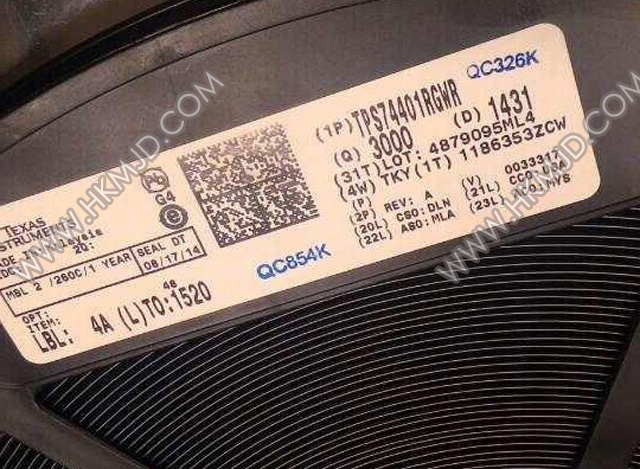

TPS74401RGWR TPS74401 3.0A Ultra-Low Dropout Linear Regulator
| Part number | Brand | Date | QTY | Package | Remarks |
| TPS74401RGWR | TI | 14+ROHS | 7500 | QFN |
Original have in stock |
Specification
| Mfr Package Description | 5 X 5 MM, 1 MM HIGHT, GREEN, PLASTIC, QFN-20 |
| Lead Free | Yes |
| EU RoHS Compliant | Yes |
| China RoHS Compliant | Yes |
| Status | ACTIVE |
| Technology | PMOS |
| Package Shape | SQUARE |
| Package Style | CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE |
| Surface Mount | Yes |
| Terminal Form | NO LEAD |
| Terminal Pitch | 0.6500 mm |
| Terminal Finish | NICKEL PALLADIUM GOLD |
| Terminal Position | QUAD |
| Number of Functions | 1 |
| Number of Terminals | 20 |
| Package Body Material | PLASTIC/EPOXY |
| Output Current-Max | 3 A |
| Output Voltage-Max | 3.6 V |
| Output Voltage-Min | 0.8000 V |
| Dropout Voltage-Max | 0.2400 V |
| Regulator Type | ADJUSTABLE POSITIVE LDO REGULATOR |
