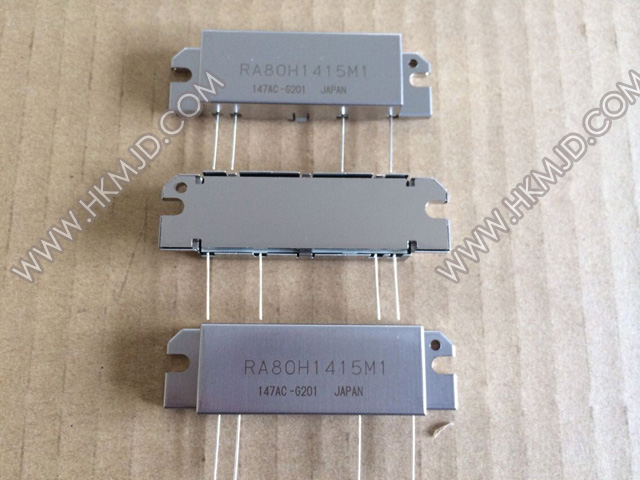

MIT RA80H1415M1 RF MOSFET Amplifier Module

MIT RA80H1415M1 RF MOSFET Amplifier Module

DESCRIPTION

The RA80H1415M1 is a 80-watt RF MOSFET Amplifier Module for 12.5-volt mobile radios that operate in the 144- to 148-MHz range.The battery can be connected directly to the drain of the enhancement-mode MOSFET transistors. The output power and drain current increase as the gate voltage increases. With a gate voltage around 4V (minimum), output power and drain current increases substantially. The nominal output power becomes available at 4.5V (typical) and 5V (maximum). At VGG=5V, the typical gate current is 1 mA.

This module is designed for non-linear FM modulation, but may also be used for linear modulation by setting the drain quiescent current with the gate voltage and controlling the output power with the input power.
