ISL29023IROZ ISL29023 Integrated Digital Ambient Light Sensor

ISL29023IROZ ISL29023 Integrated Digital Ambient Light Sensor

Features

• Resolution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16-bits ADC

• Integrated Noise Reduction . . . . . . . . . . . . . . . . . . . . 50/60Hz

• Light Sensor Close to Human Eye Response

• Excellent Light Sensor IR and UV Rejection

• Range Selection via I2C

- Range1 = 0.015 to 1,000 Lux

- Range2 = 0.06 to 4,000 Lux

- Range3 = 0.24 to 16,000 Lux

- Range4 = 0.96 to 64,000 Lux

• Shutdown Modes . . . . . . . . . . . . . . . . . .Software & Automatic

• Supply Current (Max) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85µA

• Shutdown Current (Max) . . . . . . . . . . . . . . . . . . . . . . . . . .0.3µA

• Control Interface . . . . . . . . . . . . . . . I2C and SMB Compatible

• I2C Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . 1.7V to 3.63V

• Sensor Power Supply . . . . . . . . . . . . . . . . . . . . . 2.25V to 3.63V

• Operating Temperature Range. . . . . . . . . . . . -40°C to +85°C

• Small Form Factor Package . . . . . . . .6 Ld 2.0x2.1x0.7 ODFN

Applications

• Mobile Devices: Smart Phone, PDA, GPS

• Computing Devices: Notebook PC, Webpad

• Consumer devices: LCD-TV, Digital Picture Frame, Digital Camera

• Industrial and Medical Light Sensing

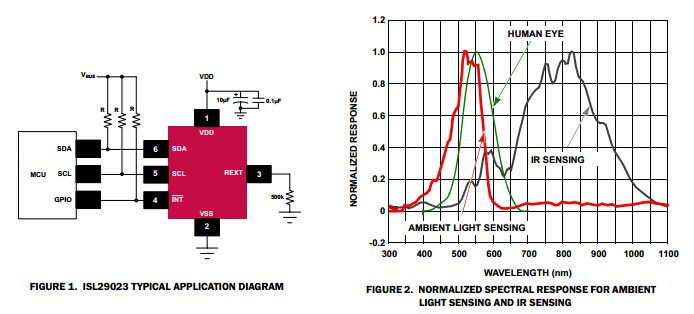

Picture：
