AP30G120W 30G120W N-CHANNEL INSULATED GATE BIPOLAR TRANSISTOR
| Part number | Brand | Date | QTY | Package | Remarks |
| AP30G120W | APEC | 14+ROHS | 7500 | TO-3P |
Original have in stock |
PDF Datasheet：
Specification：
| Mfr Package Description | ROHS COMPLIANT, TO-3P, 3 PIN |
| Status | ACTIVE |
| Package Shape | RECTANGULAR |
| Package Style | FLANGE MOUNT |
| Terminal Form | THROUGH-HOLE |
| Terminal Position | SINGLE |
| Number of Terminals | 3 |
| Package Body Material | PLASTIC/EPOXY |
| Configuration | SINGLE WITH BUILT-IN DIODE |
| Case Connection | COLLECTOR |
| Number of Elements | 1 |
| Transistor Application | GENERAL PURPOSE |
| Transistor Element Material | SILICON |
| Channel Type | N-CHANNEL |
| Transistor Type | INSULATED GATE BIPOLAR |
| Turn-on Time-Nom (ton) | 40 ns |
| Turn-off Time-Nom (toff) | 265 ns |
| Collector Current-Max (IC) | 60 A |
| Collector-emitter Voltage-Max | 1200 V |

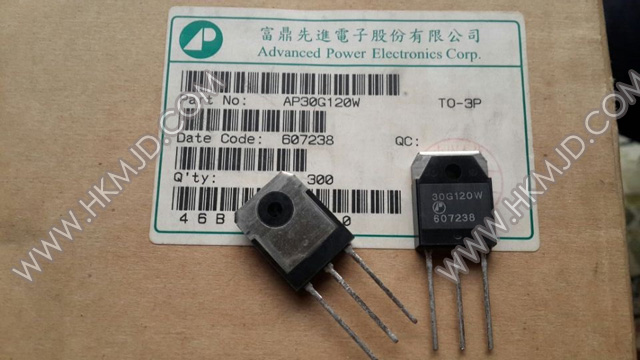

Picture：
