ISL6605CRZ ISL6605 Synchronous Rectified MOSFET Driver

ISL6605CRZ ISL6605  Synchronous Rectified MOSFET Driver

PDF Datasheet：

Features

• Drives Two N-Channel MOSFETs

• Adaptive Shoot-Through Protection

• 0.4Ω On-Resistance and 4A Sink Current Capability

• Supports High Switching Frequency

- Fast Output Rise and Fall Time

- Ultra Low Propagation Delay 8ns

• Three-State PWM Input for Power Stage Shutdown

• Internal Bootstrap Schottky Diode

• Low Bias Supply Current (5V, 30µA)

• Enable Input

• QFN Package

- Compliant to JEDEC PUB95 MO-220 QFN-Quad Flat No Leads-Product Outline.

- Near Chip-Scale Package Footprint; Improves PCB Efficiency and Thinner in Profile.

• Pb-Free Available (RoHS Compliant)

Applications

• Core Voltage Supplies for Intel® and AMD® Microprocessors

• High Frequency Low Profile DC-DC Converters

• High Current Low Voltage DC-DC Converters

• Synchronous Rectification for Isolated Power Supplies

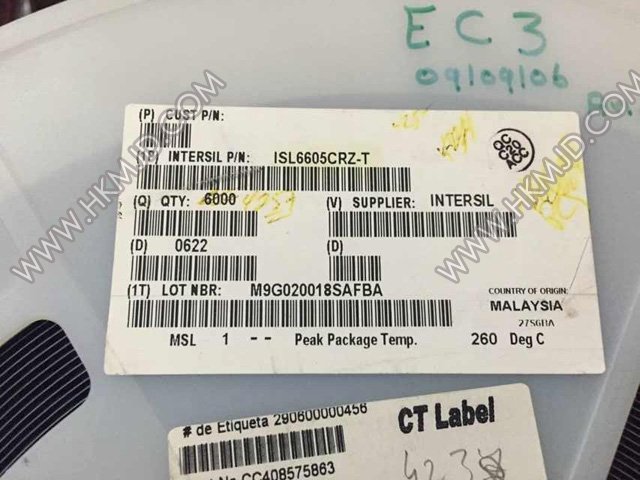

Picture：
