Product Info

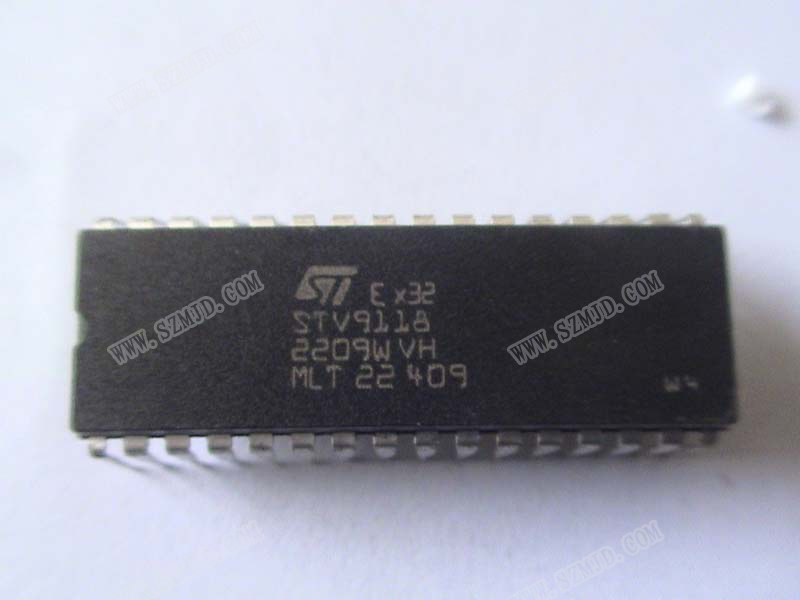

STV9118

Part No.: STV9118
MFG: ST

D/C: 13+
Packing: DIP-32
Original price: 7
QTY: 83252
PDF:

Order hotline: 86755-83294757
To view the Promotion price, Please Register Or Login
Description: Brand new 原装现货

Detailed description

由于客户采购批量与样品的价格不同，网上无法统一注明，请您把采购型号通过邮件或客服QQ:2850151585 发给我们，也可以拨打明佳达国内销售部电话：0755-83957301，由客服人员为您报价；有时元件厂商价格稍许变动，本公司未能及时调整，如您觉得售价稍高，请与我们说明并适当议价；感谢支持.

FEATURES

General

ADVANCED I2C BUS CONTROLLED

DEFLECTION PROCESSOR DEDICATED

FOR HIGH-END CRT MONITORS

SINGLE SUPPLY VOLTAGE 12V

VERY LOW JITTER

DC/DC CONVERTER CONTROLLER

ADVANCED EW DRIVE

ADVANCED ASYMMETRY CORRECTIONS

AUTOMATIC MULTISTANDARD

SYNCHRONIZATION

VERTICAL DYNAMIC CORRECTION

WAVEFORM OUTPUT

X-RAY PROTECTION AND SOFT-START &

STOP ON HORIZONTAL AND DC/DC DRIVE

OUTPUTS

I2C BUS STATUS REGISTER

Horizontal section

100 kHz maximum frequency

Corrections of geometric asymmetry:

Pin cushion asymmetry, Parallelogram

Tracking of asymmetry corrections with vertical

size and position

Fully integrated internal horizontal moiré

cancellation and moiré cancellation output

Vertical section

200 Hz maximum frequency

Vertical ramp for DC-coupled output stage with

adjustments of: C-correction, S-correction for

super-flat CRT, Vertical size, Vertical position

Vertical moiré cancellation through vertical

ramp waveform

Compensation of vertical breathing with EHT

variation

EW section

Symmetrical geometry corrections: Pin cushion,

Keystone, Top/Bottom corners separately

n Horizontal size adjustment

n Tracking of EW waveform with Vertical size and

position and adaptation to frequency

n Compensation of horizontal breathing through

EW waveform

Because of wholesale price is different from sample price, our website cannot state. Please contact us online. As well as welcome you call us : 0755-83957301.We will offer a right price; Sometimes manufacturer's price is unstable, so we don't adjust price in time. if you feel price is a little high for you, just feel free to contact us for consultation. Thank you for your support !
