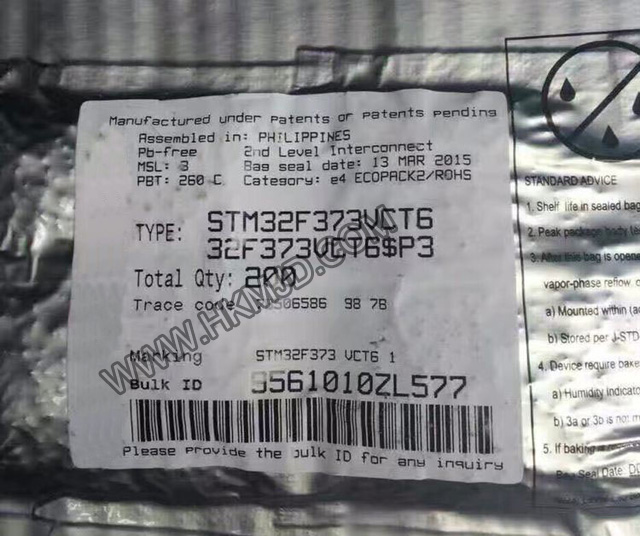

STM32F373VCT6 32-Bit 72MHz 256KB STM32 F3 Microcontroller IC

Features


Key Features

Core: ARM® 32-bit Cortex® -M4 CPU (72 MHz max), single-cycle multiplication and HW division, DSP instruction with FPU (floating-point unit) and MPU (memory protection unit)

1.25 DMIPS/MHz (Dhrystone 2.1)

Memories

64 to 256 Kbytes of Flash memory

32 Kbytes of SRAM with HW parity check

CRC calculation unit

Reset and power management

Voltage range: 2.0 to 3.6 V

Power-on/Power down reset (POR/PDR)

Programmable voltage detector (PVD)

Low power modes: Sleep, Stop, Standby

VBAT supply for RTC and backup registers

Clock management

4 to 32 MHz crystal oscillator

32 kHz oscillator for RTC with calibration

Internal 8 MHz RC with x16 PLL option

Internal 40 kHz oscillator

Up to 84 fast I/Os

All mappable on external interrupt vectors

Up to 45 I/Os with 5 V tolerant capability

12-channel DMA controller

One 12-bit, 1.0 μs ADC (up to 16 channels)

Conversion range: 0 to 3.6 V

Separate analog supply from 2.4 up to 3.6

Three 16-bit Sigma Delta ADC

Separate analog supply from 2.2 to 3.6 V, up to 21 single/ 11 diff channels

Three 12-bit DAC channels

Two fast rail-to-rail analog comparators with programmable input and output

Up to 24 capacitive sensing channels

17 timers

Two 32-bit timers and three 16-bit timers with up to 4 IC/OC/PWM or pulse counters

Two 16-bit timers with up to 2 IC/OC/PWM or pulse counters

Four 16-bit timers with up to 1 IC/OC/PWM or pulse counter

Independent and system watchdog timers

SysTick timer: 24-bit down counter

Three 16-bit basic timers to drive the DAC

Calendar RTC with Alarm and periodic wakeup from Stop/Standby

Communication interfaces

CAN interface (2.0B Active)

Two I2 Cs supporting Fast Mode Plus (1 Mbit/s) with 20 mA current sink, SMBus/PMBus, wakeup from STOP

Three USARTs supporting synchronous mode, modem control, ISO/IEC 7816, LIN, IrDA, auto baud rate, wakeup feature

Three SPIs (18 Mbit/s) with 4 to 16 programmable bit frames, muxed I2S

HDMI-CEC bus interface

USB 2.0 full speed interface

Serial wire devices, JTAG, Cortex® -M4 ETM

96-bit unique ID
