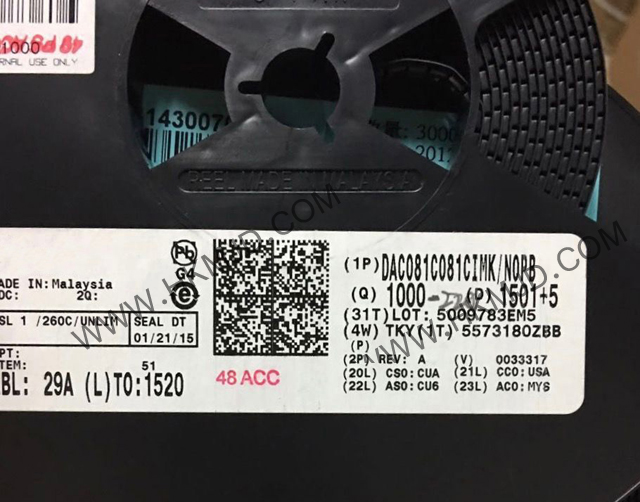

DAC081C081 DAC081C081CIMK 8 Bit Digital to Analog Converter

Features


Features

Ensured Monotonicity to 8-bits

Low Power Operation: 156 µA Maximum at 3.3 V

Extended Power Supply Range (2.7 V to 5.5 V)

I2C-Compatible 2-Wire Interface Which Supports

Standard (100-kHz), Fast (400-kHz), and HighSpeed

(3.4-MHz) Modes

Rail-to-Rail Voltage Output

Very Small Package

Resolution 8 Bits

INL ±0.6 LSB (Maximum)

DNL ±0.1 LSB (Maximum)

Settling Time 4.5 μs (Maximum)

Zero Code Error +10 mV (Maximum)

Full-Scale Error −0.7 %FS (Maximum)

Supply Power

– Normal

– 380 μW (3 V)

– 730 μW (5 V) Typical

– Power Down

– 0.5 μW (3 V)

– 0.9 μW (5 V) Typical

Application

Industrial Process Control

Portable Instruments

Digital Gain and Offset Adjustments

Programmable Voltage and Current Sources

Test Equipment
