Manufacturer Part |
|
|

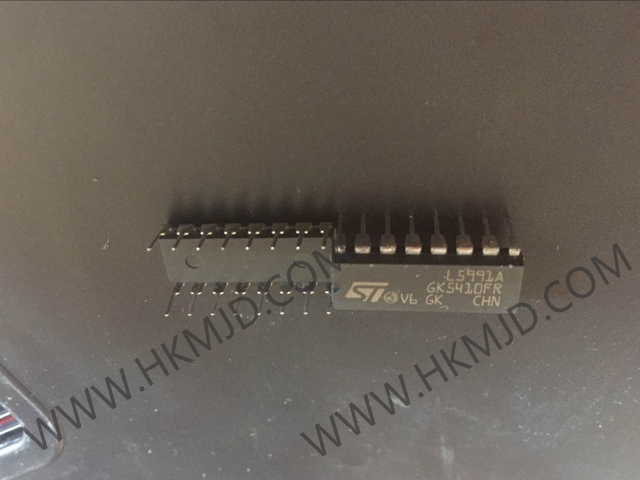

Flyback Regulator Positive, Isolation Capable Output Step-Up/Step-Down DC-DC Controller IC 16-DIP |
|
|
This primary controller I.C., developed in BCD60II technology, has been designed to implement off line or DC-DC power supply applications using a fixed frequency current mode control. |
|
|
Datasheet |
|
Details |
|
RoHS: Details Topology: Boost, Flyback Number of Outputs: 1 Output Switching Frequency: 1000 kHz Duty Cycle - Max: 93 % Output Voltage: 5.075 V Output Current: 1500 mA Minimum Operating Temperature: - 40 C Maximum Operating Temperature: + 150 C Mounting Style: Through Hole Package / Case: PDIP-16 Packaging: Tube Series: L5991 Type: Current Mode PWM Controllers Brand: STMicroelectronics Fall Time: 35 ns Operating Supply Voltage: 12 V to 20 V Rise Time: 70 ns Factory Pack Quantity: 1000 |
